Ajax-117739 Superior MultiTransmitter IO (4X4) Fibra – 4 Inputs, 4 Outputs, Wired Integration Module"NR"

Description

Ajax-117739 Superior MultiTransmitter IO (4X4) Fibra – 4 Inputs, 4 Outputs, Wired Integration Module"NR"

*Fibra can only be activated by engineers who have completed the Ajax Fibra training course*

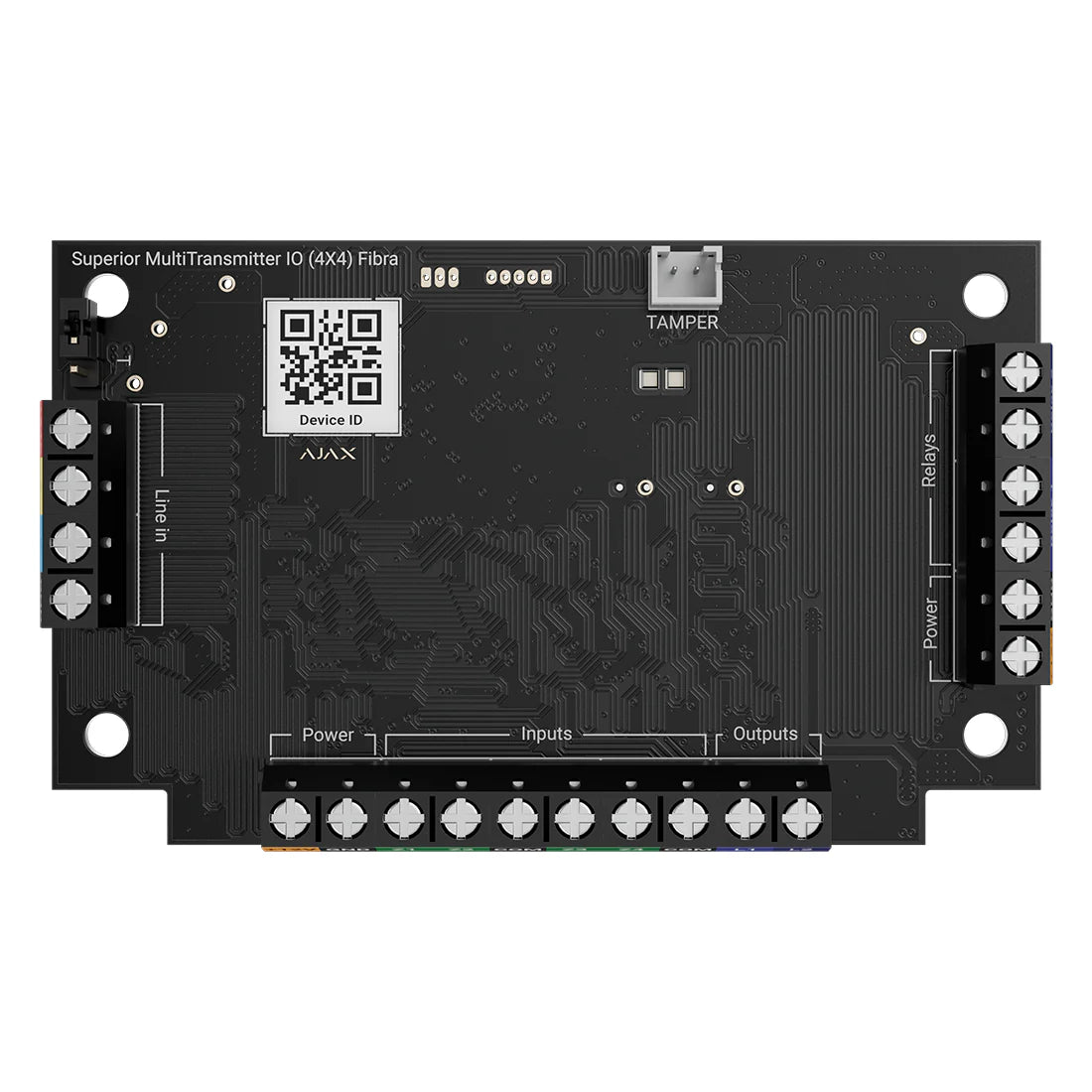

Ajax 117739 is a wired integration module designed to connect third-party security devices to the Ajax Fibra ecosystem. With four configurable inputs and four outputs (two relay, two logical), it enables seamless control and monitoring of external detectors, locks, sirens, and automation elements.

Features

• 4 inputs for third-party detectors (NO, NC, EOL, 2EOL, 3EOL supported)
• 4 outputs: 2 relay, 2 logical for device control
• Pulse and bistable modes for inputs/outputs
• Automatic EOL resistance measurement for fast setup
• Supports multiple event types: intrusion, panic, fire, key arm, roller shutter
• Instant detection of wired connection loss (EOL devices)
• Secure Fibra protocol communication with Ajax hub
• Communication range: up to 2,000 m via Cat5 (4-core bus)
• Power consumption: up to 7.5W from Fibra line
• Dimensions: 93 × 55 × 27 mm
• Mounts at any point along the Fibra line
• RoHS compliant
