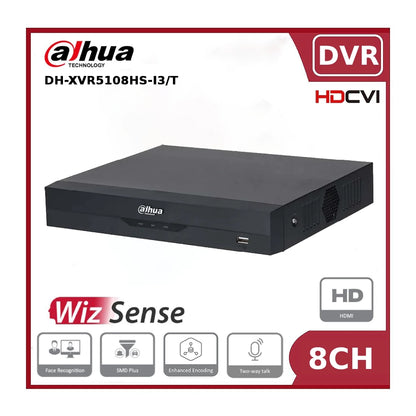

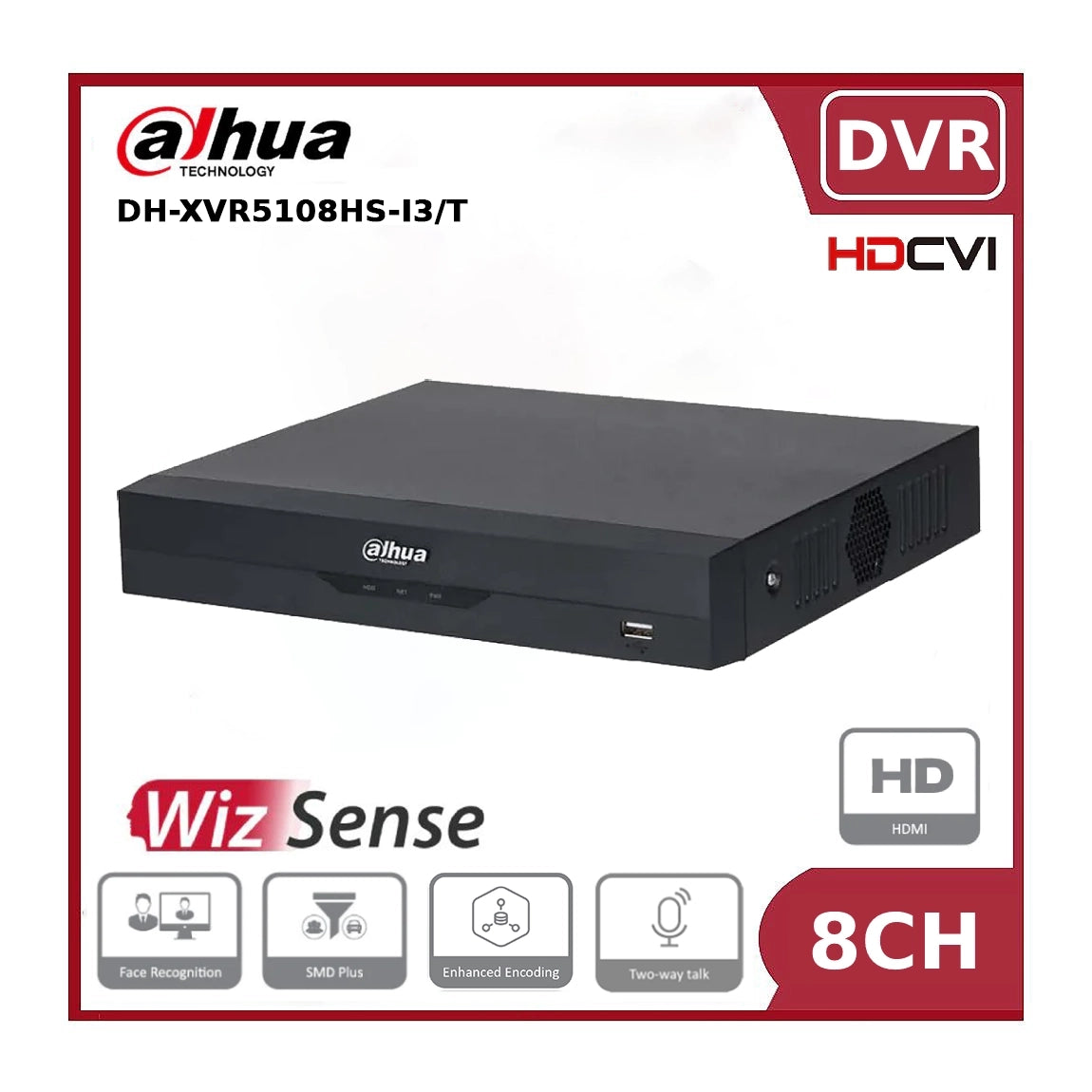

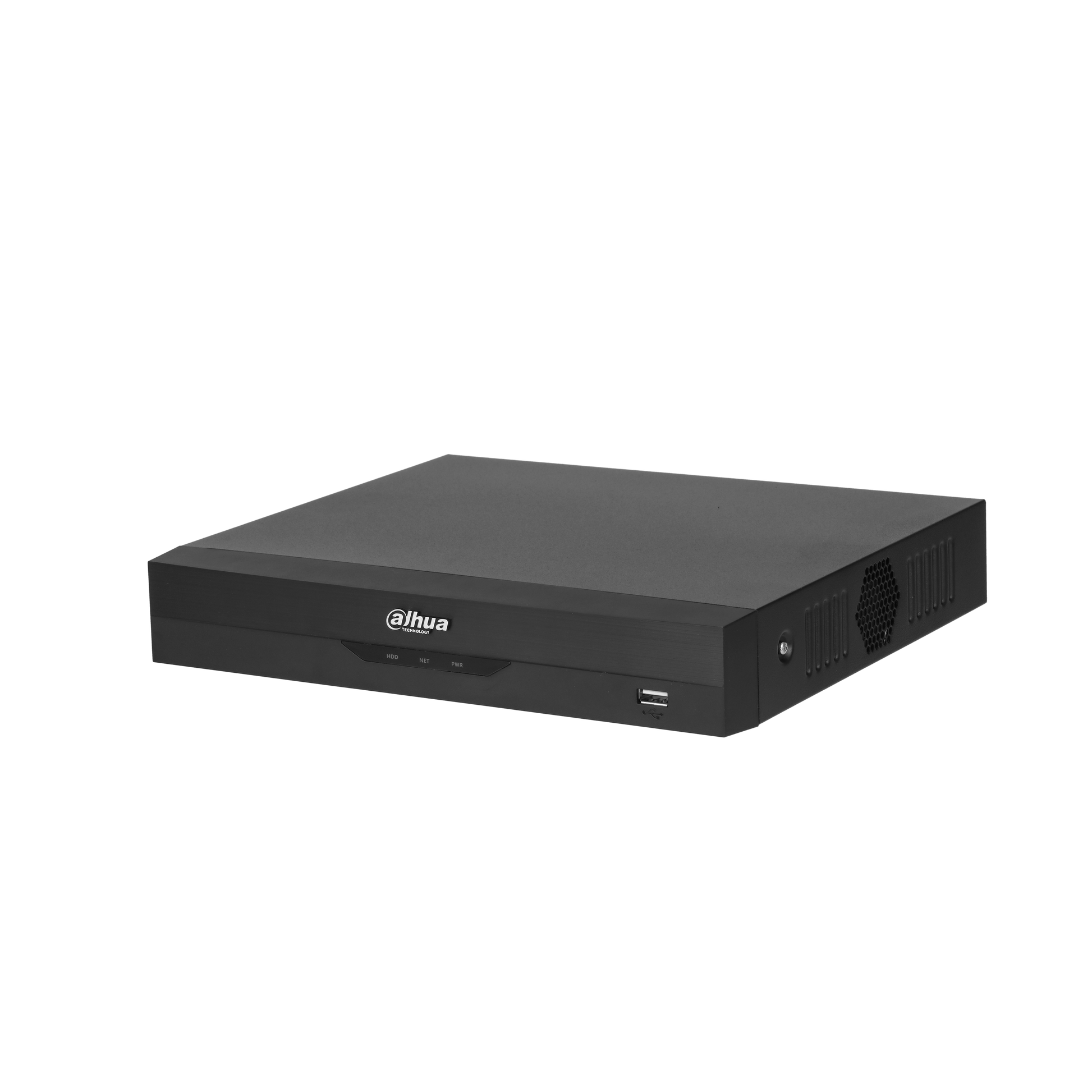

Dahua XVR5108HS-I3/T 8 Channel Penta-brid 5MP WizSense Compact 1U Digital Video Recorder with AI Functions and Two-Way Audio

Description

Dahua XVR5108HS-I3/T 8 Channel Penta-brid 5MP WizSense Compact 1U Digital Video Recorder with AI Functions and Two-Way Audio

The Dahua XVR5108HS-I3/T is an 8 channel Penta-brid WizSense digital video recorder that accepts HDCVI, AHD, TVI, CVBS and IP camera inputs all on the same unit, making it equally at home on a new installation or an existing analogue system being upgraded.

It supports up to 5MP resolution on analogue channels and expands to a maximum of 12 IP cameras, with Smart H.265+ and AI Coding keeping storage and bandwidth usage lean throughout. WizSense AI is handled at the recorder level, bringing AcuPick for fast person and vehicle search across recordings, full-channel SMD Plus to cut out false alarms from animals and environmental triggers, Perimeter Protection on up to 4 channels, and face recognition backed by up to 10 databases holding 10,000 images.

Eight channel coaxial two-way audio allows two-way communication over existing BNC cabling to compatible cameras, removing the need for any additional audio runs. A single HDD bay supports drives up to 16TB, outputs include HDMI and VGA, and the unit draws under 7W without a drive making it an efficient and compact desktop recorder.

Features

• 8 channel analogue input supporting HDCVI, AHD, TVI and CVBS via auto-detection
• Max encoding resolution of 5MP at 20fps on channels 1 and 2, 1080p at 25fps across all channels
• Up to 12 IP camera inputs supported, up to 6MP per IP channel
• AI Functions: 2-ch AcuPick, 2-ch Face Recognition, 4-ch Perimeter Protection with tripwire and intrusion, 8-ch SMD Plus and 8-ch AI Coding
• 8-ch coaxial two-way audio via BNC, plus 1x RCA audio in and 1x RCA audio out
• Smart H.265+, H.265, Smart H.264+ and H.264 compression with AI Coding
• Face recognition with up to 10 databases and 10,000 face images, plus 6-attribute face detection
• AI Video Quality Analytics across 8 channels detecting brightness, colour cast, defocus and contrast issues
• 1x SATA HDD bay, supports up to 16TB
• 1x HDMI and 1x VGA video output, up to 1920 x 1080
• 1x RJ-45 10/100 Mbps Ethernet port
• 2x USB 2.0 ports, 1x RS-485 port
• ONVIF compatible, mobile access via DMSS and DoLynk apps on iOS and Android
• 12VDC 2A power supply, under 7W consumption without HDD
• Compact 1U desktop form factor, 260 x 237.8 x 47.6 mm
• Operating temperature: minus 10 to plus 55 degrees C
