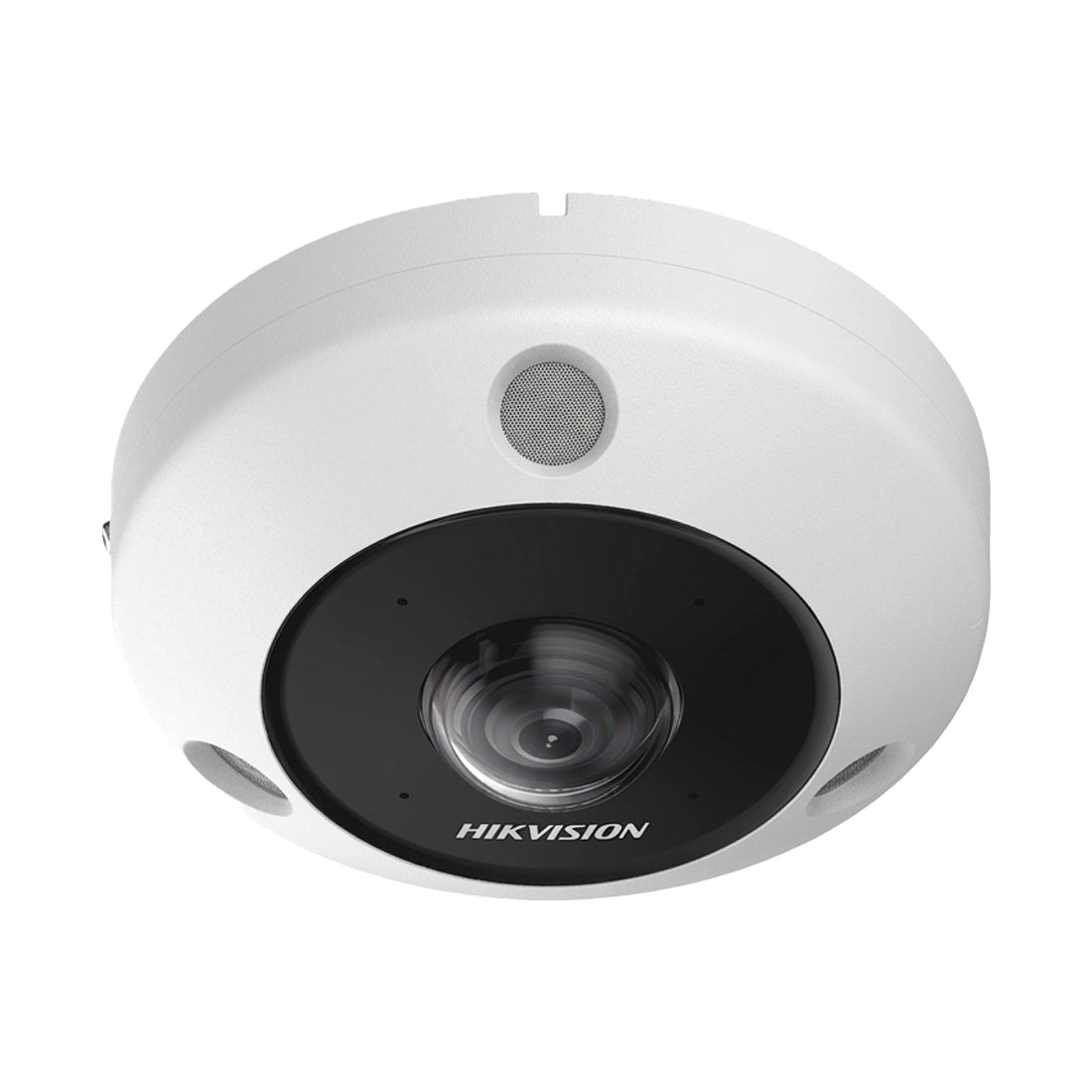

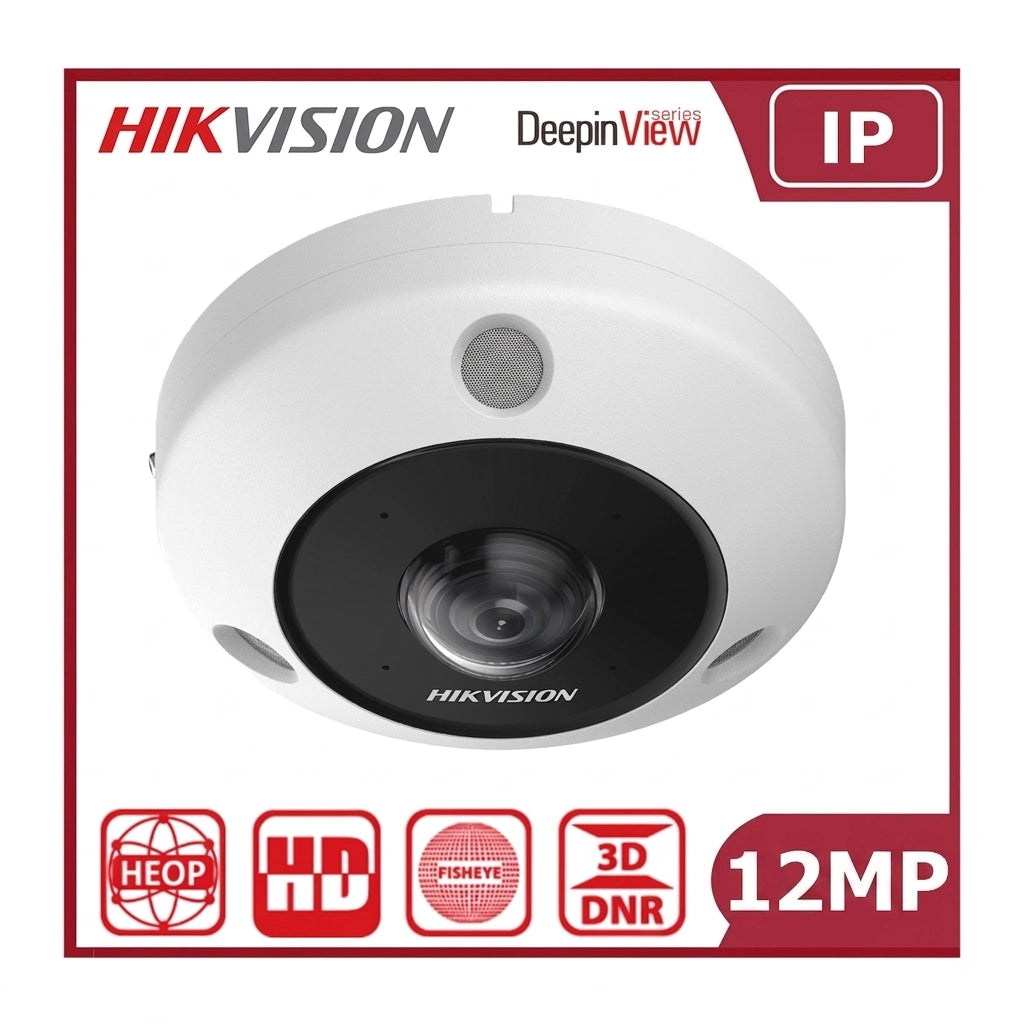

Hikvision DS-2CD63C5G1-IVS 12MP DeepinView IR Fisheye 360° Network Camera

Description

Hikvision DS-2CD63C5G1-IVS 12MP DeepinView IR Fisheye 360° Network Camera

The Hikvision DS-2CD63C5G1-IVS is a 12MP DeepinView IR network fisheye camera designed to provide a 360-degree panoramic view of the monitored scene. Its 1/1.8" progressive scan CMOS sensor delivers high-resolution images up to 3504 × 3504, providing clear and detailed video that can also be used in dewarped viewing modes.

The camera features a fixed 1.29mm panomorph lens with a 180° horizontal and 180° vertical field of view. With support for up to 20 live view display modes and wall, table or ceiling mounting, the camera can provide different viewing configurations to suit a range of surveillance requirements. Multi-dewarping technology allows the fisheye image to be converted into more intuitive viewing formats, including panorama and PTZ-style views.

Three independently controlled infrared lights provide an IR range of up to 15 metres, allowing the camera to maintain visibility in low or zero-light environments. The camera also supports Digital WDR, BLC, HLC, 3D DNR, defog and distortion correction to help improve image quality in different conditions.

Deep learning functions provide advanced people counting, queue management, heat map and intersection analysis capabilities. The people counting function can separately count people entering, exiting and passing through defined areas, while queue management can monitor regional people queuing and waiting times. Heat map functionality provides a graphical representation of visits based on people numbers or dwell time.

The DS-2CD63C5G1-IVS also supports a range of intelligent events, including line crossing, intrusion detection, region entrance and region exiting detection, scene change detection, audio exception detection, defocus detection, unattended baggage detection and object removal detection.

For audio communication, the camera has four built-in microphones and one built-in speaker, supporting two-way audio. It also provides audio input and output connections, together with alarm inputs and outputs and an RS-485 interface for integration with compatible equipment.

Network connectivity is provided through a 10/100/1000 Mbps RJ45 Ethernet interface, with support for PoE using IEEE 802.3af Class 3. The camera supports H.265+, H.265, H.264+ and H.264 video compression and includes a built-in microSD card slot supporting cards up to 256GB.

Designed for demanding surveillance environments, the camera has an IP67-rated housing for water and dust resistance and IK10-rated protection against vandalism. With its 12MP resolution, 360-degree panoramic coverage, infrared illumination, intelligent DeepinView functions, dewarping modes and two-way audio, the Hikvision DS-2CD63C5G1-IVS provides a versatile solution for wide-area network video surveillance.

Features:

• 12MP DeepinView IR network fisheye camera
• 360-degree panoramic image coverage
• 1/1.8" progressive scan CMOS sensor
• Maximum resolution of 3504 × 3504
• Fixed 1.29mm panomorph lens
• 180° horizontal field of view
• 180° vertical field of view
• Minimum illumination: 0.03 Lux in colour
• Minimum illumination: 0.006 Lux in black and white
• 0 Lux in black and white with IR
• Three independently controlled IR lights
• IR illumination up to 15 metres
• Up to 20 live view display modes
• Multi-dewarping modes
• Supports wall, table and ceiling mounting
• 4PTZ viewing mode
• Fisheye + 3PTZ viewing mode
• 4PTZ Fusion View
• H.265+ / H.265 / H.264+ / H.264 video compression
• Digital WDR
• BLC and HLC
• 3D DNR
• Defog
• Distortion correction
• ROI support
• Built-in four microphones
• Built-in speaker
• Two-way audio
• People counting
• Queue management
• Heat map
• Intersection analysis
• Line crossing detection
• Intrusion detection
• Region entrance detection
• Region exiting detection
• Scene change detection
• Audio exception detection
• Defocus detection
• Unattended baggage detection
• Object removal detection
• 10/100/1000 Mbps self-adaptive RJ45 Ethernet port
• IEEE 802.3af PoE, Class 3
• Built-in microSD/microSDHC/microSDXC card slot
• Supports microSD cards up to 256GB
• ONVIF Profile S, Profile G and Profile T
• Hik-Connect support
• NAS storage support
• 12VDC power supply option
• IP67 water and dust resistance
• IK10 vandal resistance
• 1 RS-485 interface
• 2 alarm inputs and 2 alarm outputs
• Operating temperature: -40°C to +60°C
