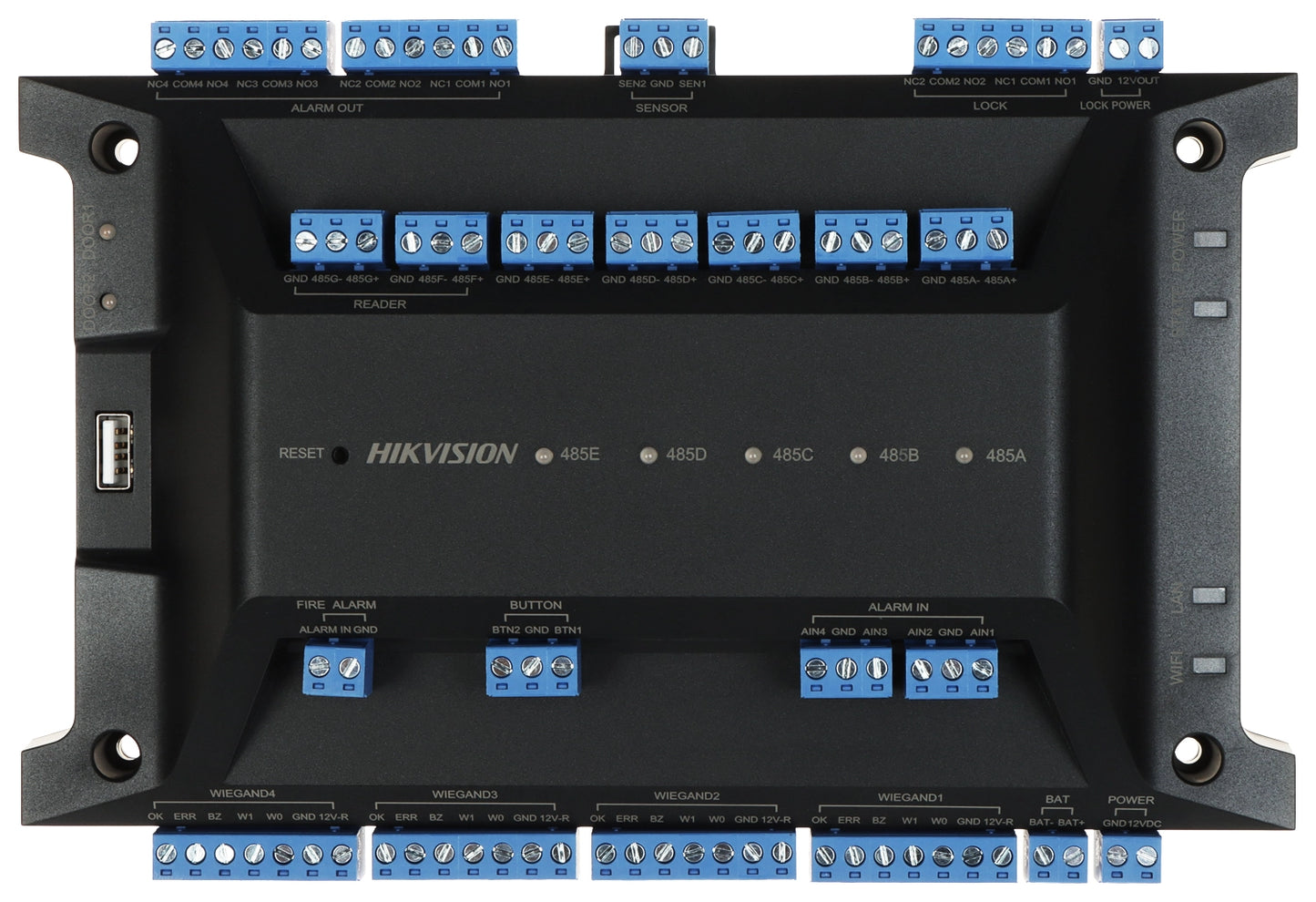

Hikvision DS-K2702X(P) Ultra 2 Door PoE Access Controller

Description

Hikvision DS-K2702X(P) Ultra 2 Door PoE Access Controller

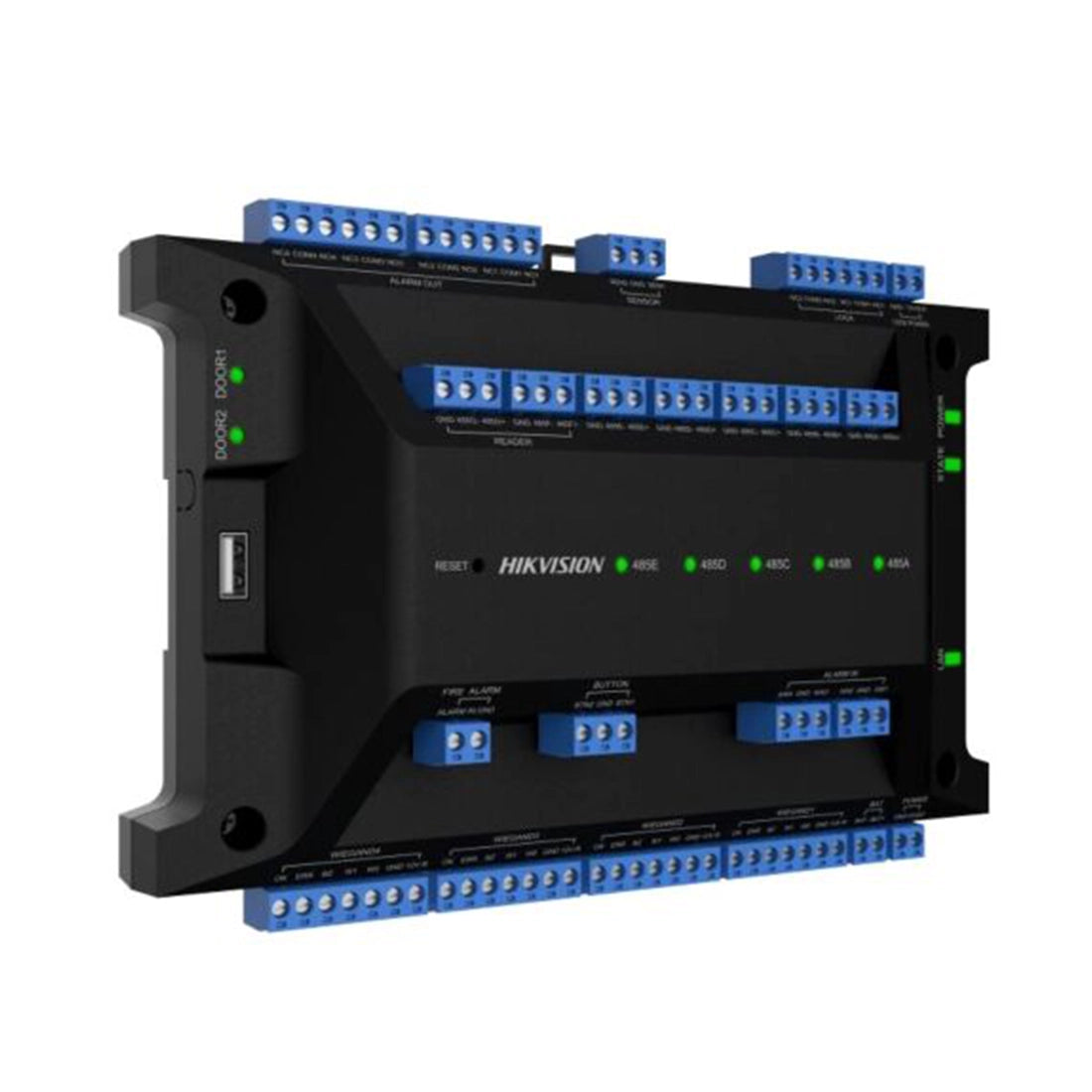

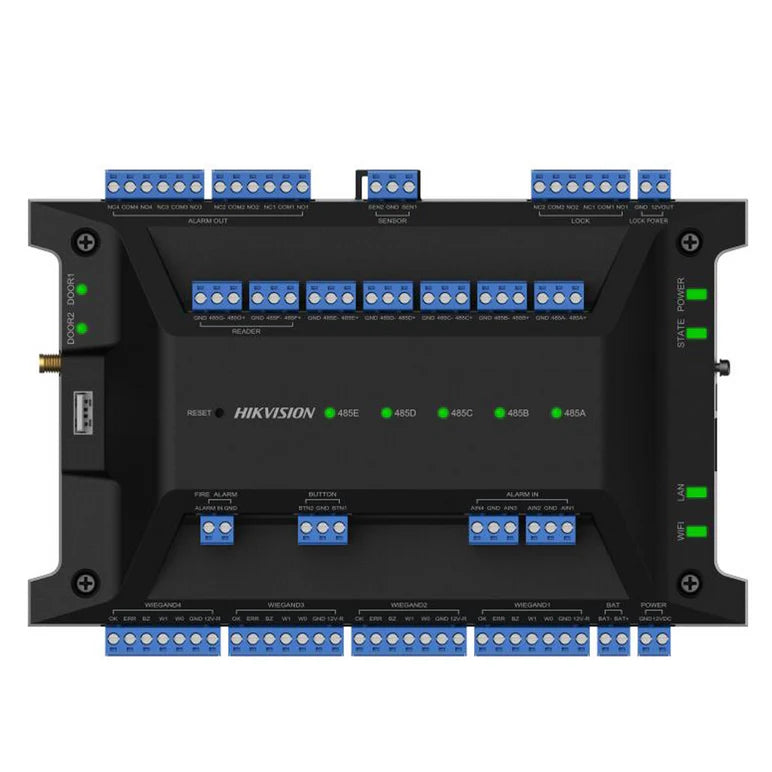

The Hikvision DS-K2702X(P) is a professional-grade main board designed for 2-door access controllers. Built for stability and durability, it delivers reliable performance in demanding security environments. With seamless integration into Hikvision’s Ultra Series, it supports advanced access management, card reader connectivity, and secure locking mechanisms. Its compact design ensures easy installation, making it an ideal choice for upgrading or replacing existing access controller boards.

Features

• Supports 2 door control. It can extend up to 62 DS-K2M002X access modules, and up to 126 doors can be controlled
• Compatible with Hik-Connect Teams Mode, enabling user credentials to be uploaded directly through the smartphone app.
• Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
• Web configuration management. All configurations can be realized via web without software application
• Supports professional access control applications such as multi-door interlocking and anti-passback

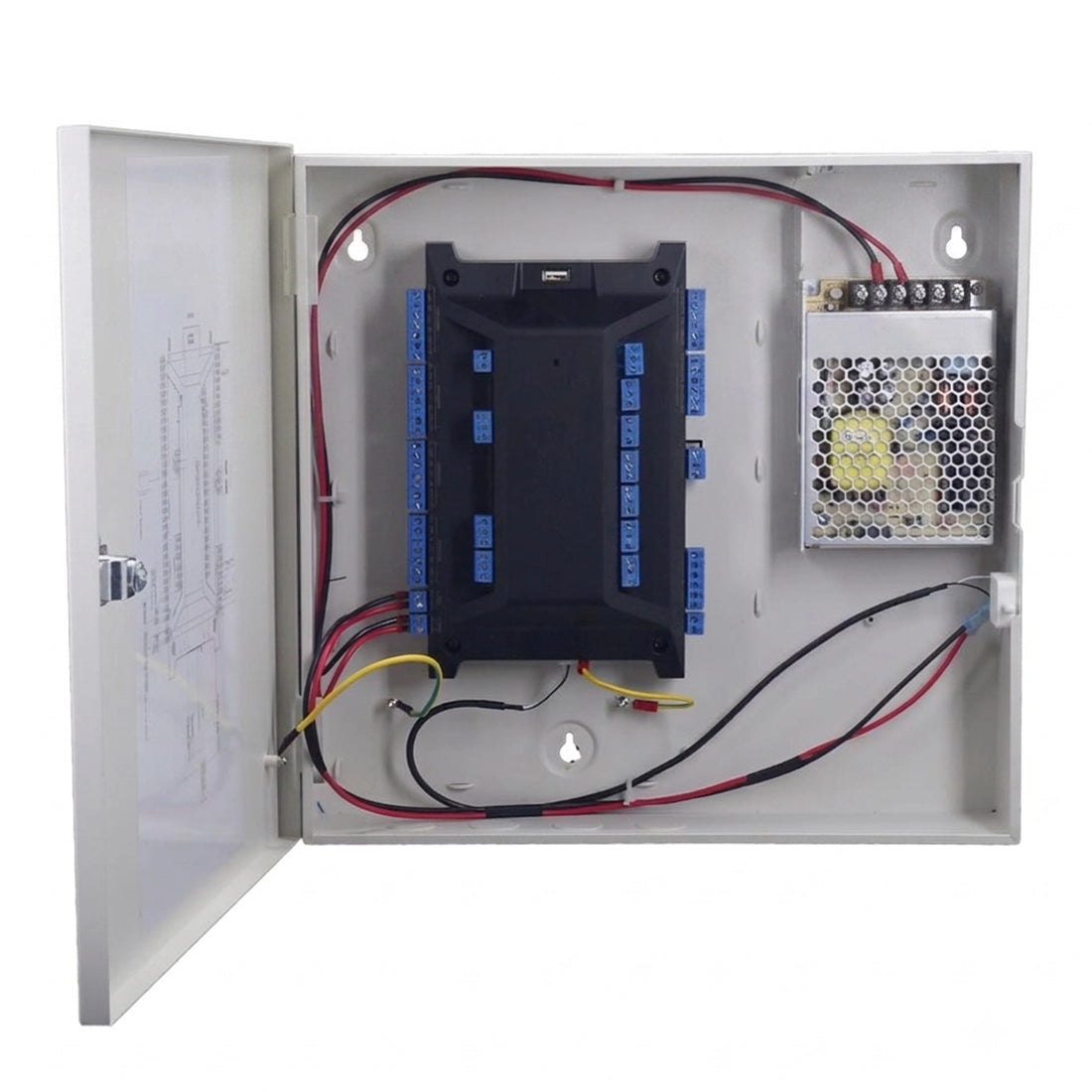

• Supports backup battery access. Charging and discharging are available
• It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
• Powers supply by PoE

*Battery: Up to 12v 7ah (not included)*
