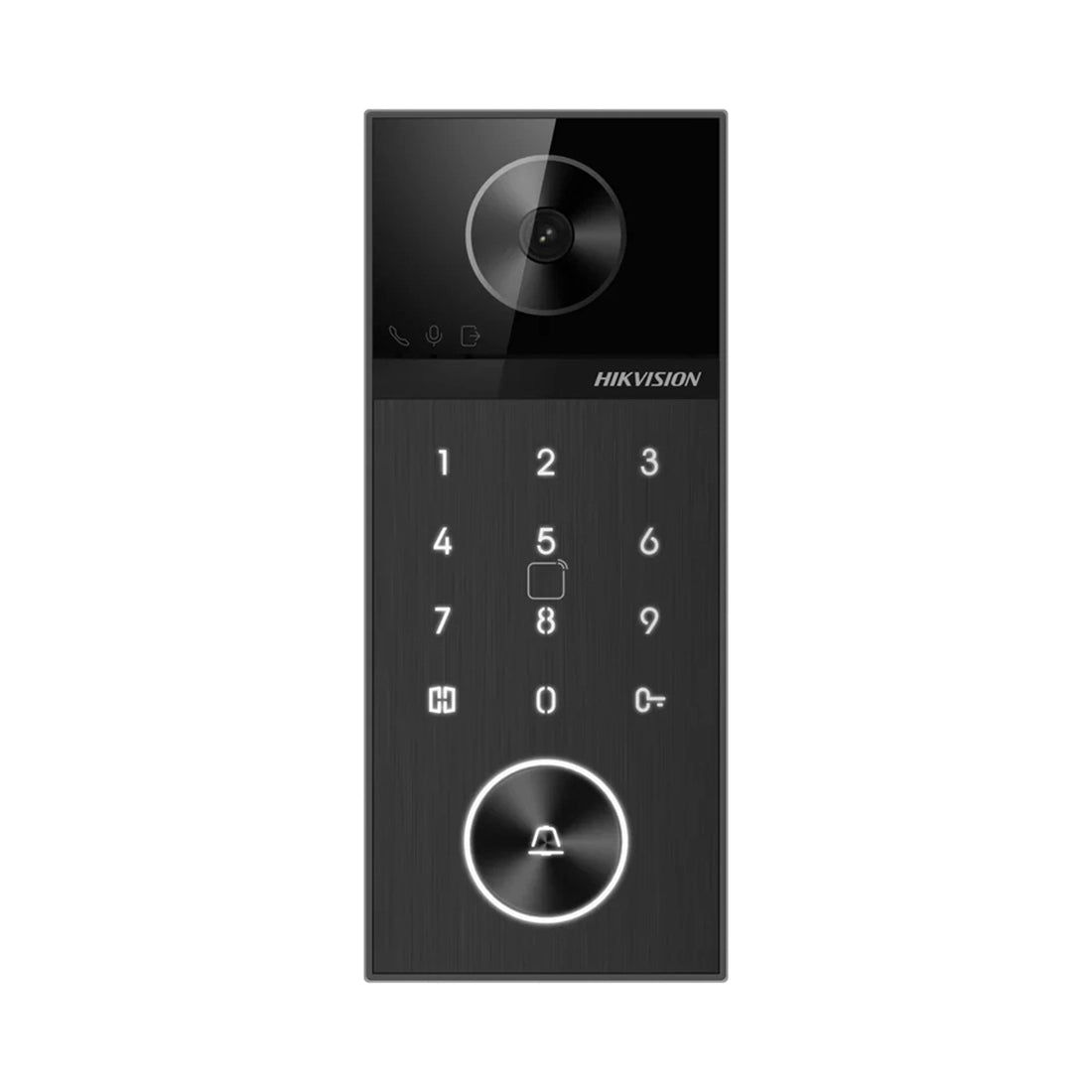

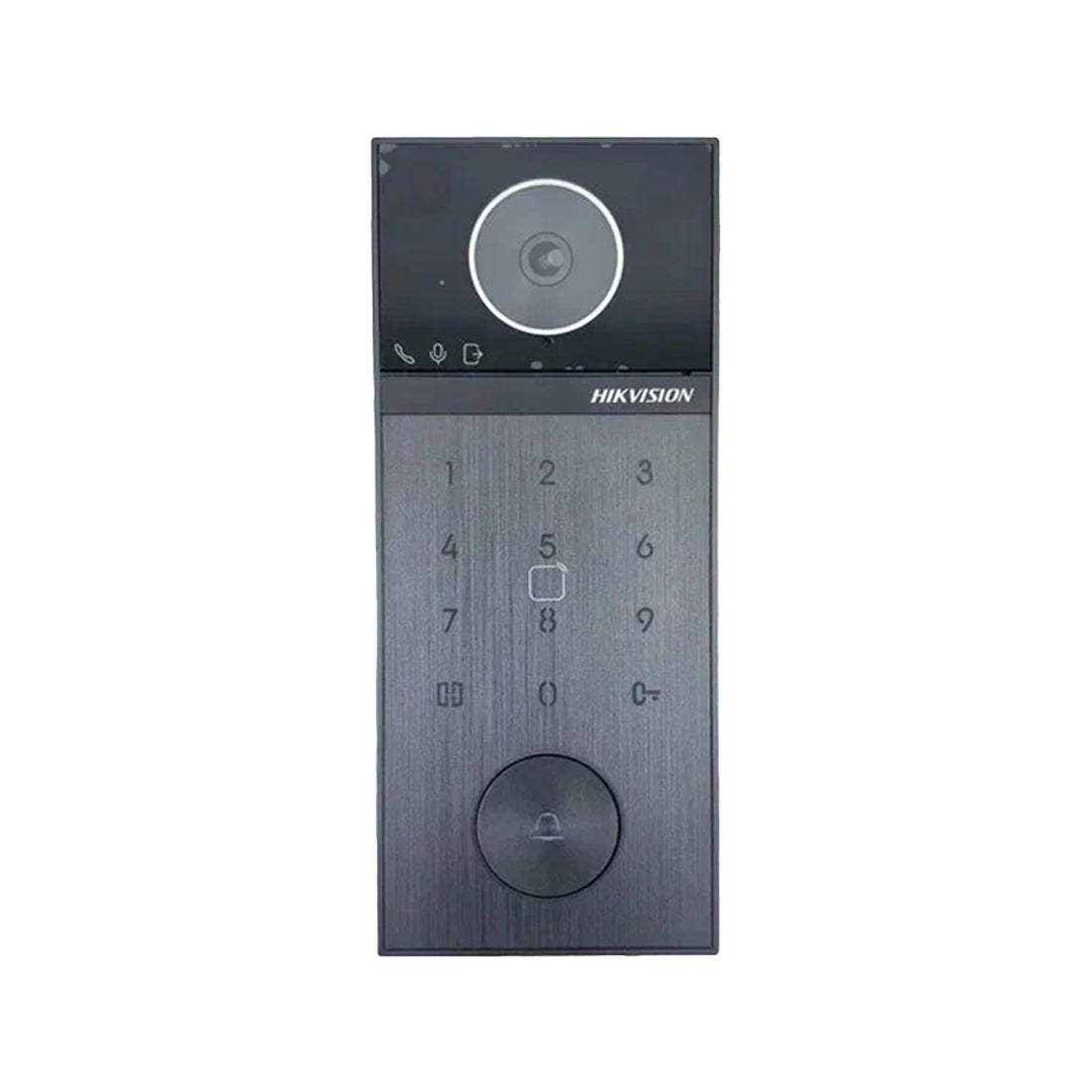

Hikvision DS-KV6124-WBE1 4mp Villa Intercom Door Station with Keypad/Prox/Bluetooth

Description

Hikvision DS-KV6124-WBE1 4mp Villa Intercom Door Station with Keypad/Prox/Bluetooth

The DS KV6124 WBE1 is a robust and feature-rich villa door station designed to bring high-quality video intercom capabilities to residential settings. With a 4 MP sensor and an ultra-wide 150° horizontal field of view, it delivers expansive, detailed coverage of the entrance area. Enhanced by 120 dB wide dynamic range and supplemental infrared illumination up to 3 m, it ensures clear imaging even in challenging lighting conditions.

This unit supports multiple unlock methods to suit a variety of user preferences and security demands. Users can gain entry via proximity card, PIN code, Bluetooth, the Hik-Connect app or via an associated indoor station. It also supports control of up to two electric locks, enabling more flexible door or gate setups. Local video recording is supported through a microSD (TF) card (up to 128 GB), while live view and replay can be accessed remotely via mobile or web.

On the audio front, the DS KV6124 WBE1 features a built-in omnidirectional microphone and speaker, with noise suppression and echo cancellation to maintain high clarity. It supports multiple audio codecs to optimize quality and bandwidth. For intelligent monitoring, the device includes sound classification detection for abnormal sounds such as screaming, glass breakage, or crying within a recommended range.

Designed for outdoor use, the station is rated IP65 for weather resistance and operates over a wide range from –40 °C to +60 °C. It uses a surface mounting design and can be powered via IEEE 802.3at PoE or a 12 V DC supply. The compact form factor, paired with strong build quality, makes it ideal for villa entrances, gated homes, or small commercial sites.

Features

• 4 MP video resolution with 150° horizontal and 75° vertical field of view
• Wide dynamic range support up to 120 dB
• Dual lock control with two relay outputs
• Multiple unlocking methods: proximity card, PIN code, Bluetooth, mobile app, indoor station
• Local recording via microSD card (maximum 128 GB)
• Sound classification detection (scream, glass break, crying)
• Built-in microphone and speaker with noise suppression and echo cancellation
• Network connectivity via Ethernet, WiFi (2.4 GHz) and Bluetooth
• Rugged construction with IP65 ingress protection and wide temperature tolerance
• Low power consumption (< 10 W) with PoE or 12 V DC power support
